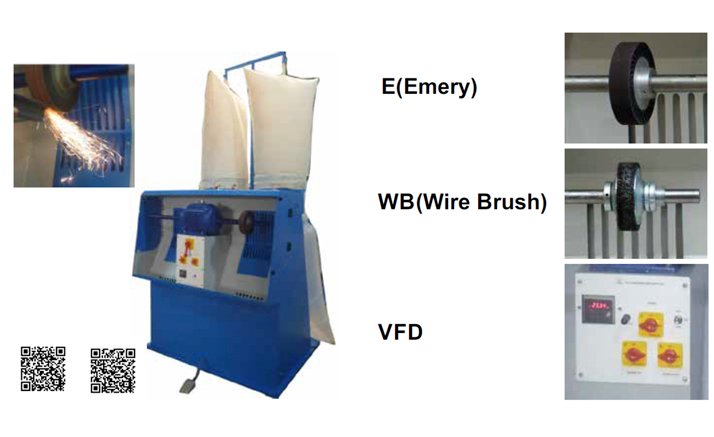

ROUGHENING AND SCOURING PR 1140/D/F/E,WB,VFD

Used in Full shoe section for roughening and scouring the Lasted upper.

• Double speed (2800 & 1440rpm)main motor with both side 350mm Extension shaft
• Individual suction motor with control
• Dust collection bag with micron bag filter
• Pedal operated timer based Water Spray system
• Speed control VFD Optional
• Emery wheel (OD:90mm & Width:35mm, OD:140mm & Width:35mm, OD:140mm & Width:100mm
• Scouring wire brush with collet as per request

Technical Data
Voltage	415v-AC
Power	2.3 Kw
Machine weight	175 Kg
Gross Weight	245 Kg
Dimension	1150x1220x1455
Packing Dim	1300x1370x1605
