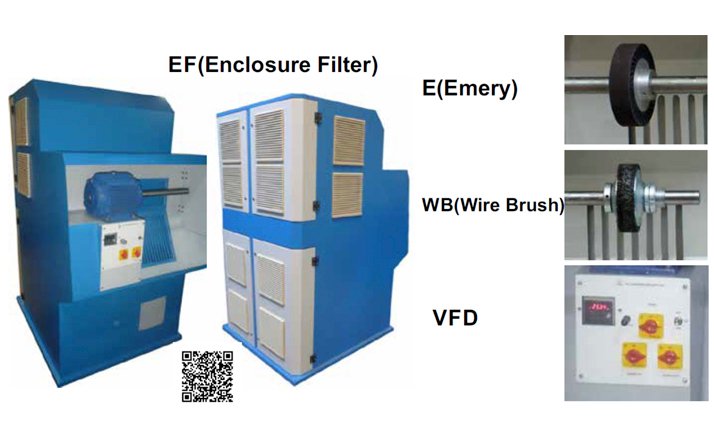

ROUGHENING AND SCOURING PR 1140/S/EF/E,WB,VFD

Above Qr Code scanned video will open only through Dropbox
Used in Full shoe section for roughening and scouring the Lasted upper.
  • Double speed (2800 & 1440rpm)main motor with both side 350mm Extension shaft
  • Individual suction motor with control
  • Dust collection bag with micron bag filter
  • Filter bag Covered by Metal Enclosure with Micron Filter
  • Speed control VFD Optional
  • Emery wheel (OD:90mm & Width:35mm, OD:140mm & Width:35mm, OD:140mm & Width:100mm
  • Scouring wire brush with collet as per request
Technical Data
Voltage 415v-AC
Power 1.52 Kw
Machine weight 150 Kg
Gross Weight 210 Kg
Dimension 896x1355x1616
Packing Dim 1046x1505x1766
