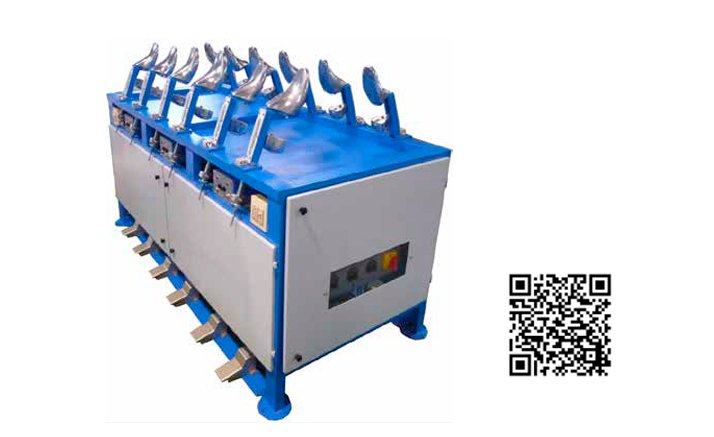

PREFORMING MACHINE PR 1070/12S

The Machine is used to preform Mocassin upper’s by heat and Manual Hammering

• This machine is used to preform mocassin upper’s
• The Mould on the machine varies as per requirement
• The temperature and mould length can be adjusted
• Right and left side individual temperature controller
• Step down Transformer for Mould Heater
• On/Off switch with socket for MOC- iron gun
• Mould heater specification as per customer requirement ( Heater Diameter, watts, Voltage)

Technical Data
Voltage	415v-AC
Power	1.8 Kw
Air Power	6 Bar
Machine weight	210 Kg
Gross Weight	260 Kg
Dimension	2053x1000x1140
Packing Dim	1203x1150x1290
