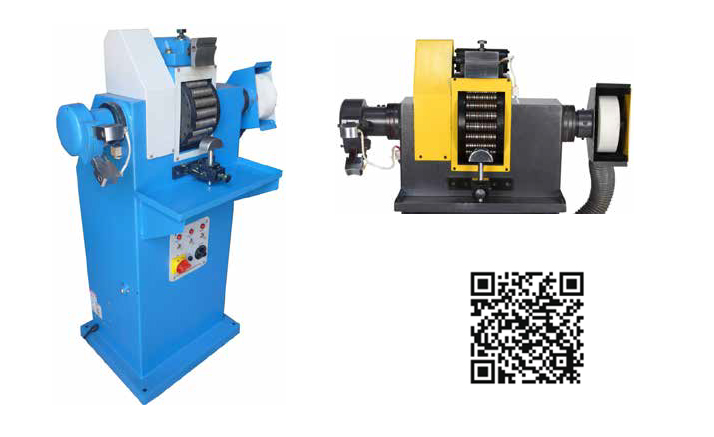

POUNDING MACHINE-MEN PR 1130/M

Above Qr Code scanned video will open only through Dropbox
Used in the bottoming section of shoe assembly to ensure a clean and defined feather edge.
  • In the centre is the rotating wheel equipped with numerous ring which revolves at a very high speed ensuring uniform hammering of vamp area
  • The three separate hammers are provided for the removal of wrinkles in vamp, waist and heel area. These hammers are heat regulated ensuring best results.
  • Also provided is a high speed abrasive roller with powerful exhaust for removing surplus lasting margin.
Technical Data
Voltage 415v-AC
Power 1.1 Kw
Machine weight 110 Kg
Gross Weight 170 Kg
Dimension 915x715x1375
Packing Dim 1065x865x1525
