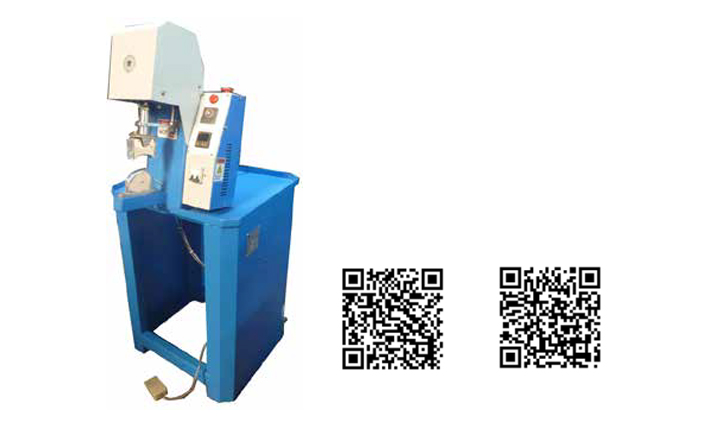

BACK SEAM PRESS MACHINE PR 1034

Used in the upper to open out back seam after stitching
  • The Machine is used to open out back seam after stitching and seam rubbing
  • Different types and shape of back seam mould can be mounted on the machine
  • The temperature and pressure dwell time can be adjusted
  • The machine working area is inclined to better view while pressing the seam
  • This Thermo- pneumatic machine is a sleek, user friendly and compact machine.
Technical Data
Voltage 240v-AC
Power 0.1 Kw
Air Power 6 Bar
Machine weight 70 Kg
Gross Weight 120 Kg
Dimension 585x615x1350
Packing Dim 735x965x1500
