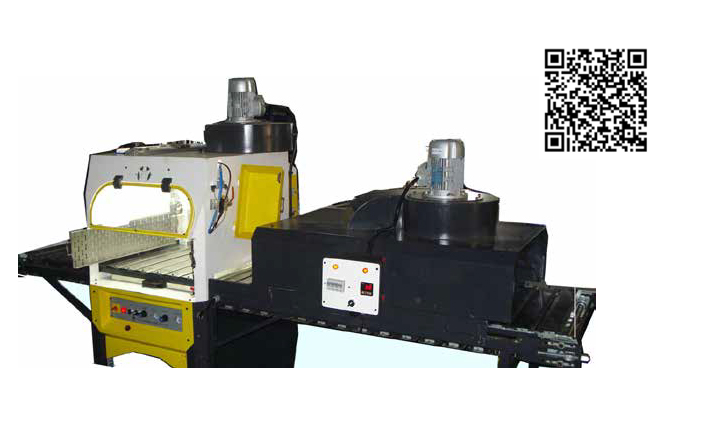

AUTOMATIC LATEX SPRAY PR G 1514

Above Qr Code scanned video will open only through Dropbox
Enclosure Type Latex Spray with spray gun from Japan
Three sided suction with water table
  • Stainless steel Plate type conveyor system
  • Latex spray with inbuilt drier system
  • Infrared Heater with closed loop forced drier
  • Temperature can be variable
  • Pressure tank with bag in box connector for Latex pouch.
  • Covered cabinet to protect the operator from toxic fumes , hence no mask need.
  • Dual tank incorporated separately for water and latex
  • High Efficient suction system.
  • Exhaust air filtering system( Water bed).
  • Fine adjustment for spray pattern width
  • Suspended system for Latex gun.
  • User friendly and eco friendly.
Technical Data
Voltage 415v-AC
Power 5.5Kw
Air Power 6Bar
Machine weight 250 Kg
Gross Weight 325 Kg
Dimension 3660x1650x2090
Packing Dim 3810X1800x2240
