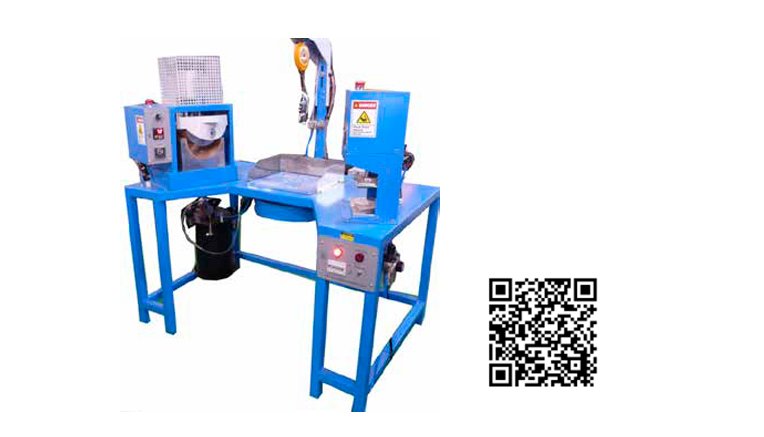

3 IN 1-TOE CAP ASSEMBLY PR 1080

Above Qr Code scanned video will open only through Dropbox
Three operation In one machine ,Toe Cap Stiffner pick up, Latex Spray ,Toe puff attaching
  • This machine is based on Thermo-Pneumatic principle
  • Process involves Toe puff stiffner softening and picking up and placing the stiffner on the upper and attaching the lining by spraying Latex and finally pressing by the Toe puff machine
  • Temperature adjustable according to material used
  • Temperature of hot Mould variable between 60 0c -100 0c
Technical Data
Voltage 415v-AC
Power 1.1 Kw
Air Power 6 Bar
Machine weight 95 Kg
Gross Weight 150 Kg
Dimension 1375x915x1650
Packing Dim 1525x1065x1800
