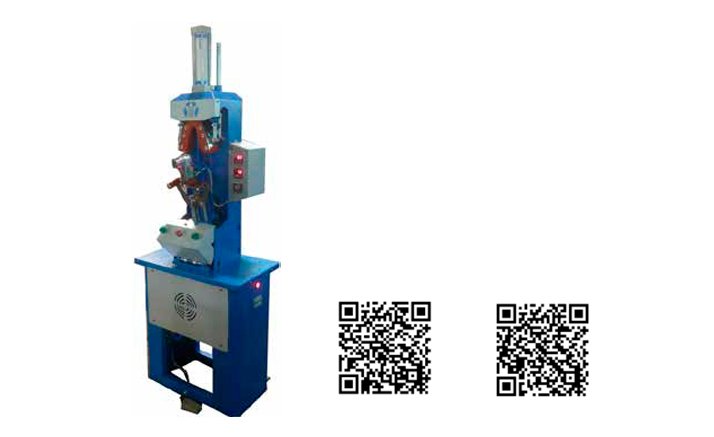

STIFFNER ATTACHING MACHINE PR 1005

Above Qr Code scanned video will open only through Dropbox Dropbox
The Machine is used to attach the Thermo plastic stiffner in between the lining and Upper in the counter area.
  • This machine is based on Thermo-Pneumatic principle
  • Process involves thermal softening and forming to attach counter stiffener in the closing room
  • Temperature adjustable according to material used
  • Temperature of hot Mould variable between 60 0c -100 0c
Technical Data
Voltage 415v-AC
Power 1.1 Kw
Air Power 6 Bar
Machine weight 110 Kg
Gross Weight 160 Kg
Dimension 712x432x2032
Packing Dim 862x582x2182
