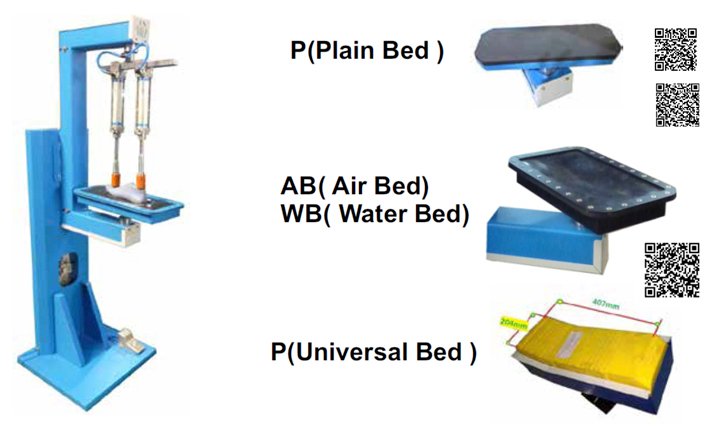

SOLE MARKING MACHINE PR 1164/V/ P or AB or WB

Used in the bottoming section before roughening to mark sole shape on the lasted upper
  • The machine is used mostly on Cup soles to mark sole shape on the lasted uppers
  • The machine is provided with two adjustable positioning Pneumatic holder for Different type of Last Sizes and shapes
  • Different of types of bed available as per customer requirement
  • Plain bed,Air bed & Water Bed (185mm x 340mm) and universal bed(204mm x 407mm)
Technical Data
Machine weight 80 Kg
Gross Weight 115 Kg
Dimension 600x590x1820
Packing Dim 750x740x1970
