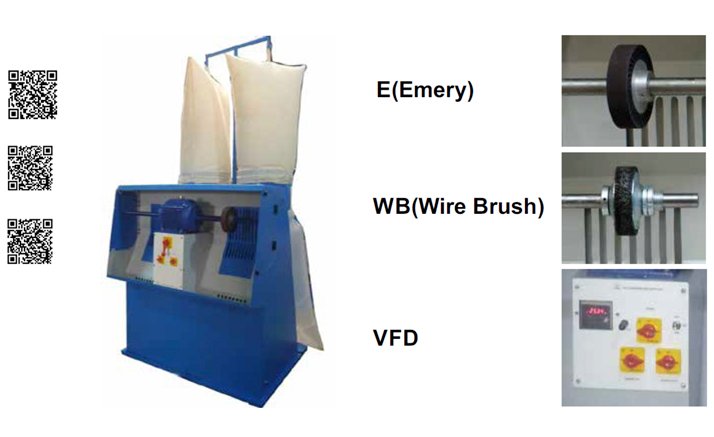

ROUGHENING AND SCOURING PR 1140/D/E,WB,VFD

Used in Full shoe section for roughening and scouring the Lasted upper.
  • Double speed (2800 & 1440rpm)main motor with both side 350mm Extension shaft
  • Individual suction motor with control
  • Dust collection bag with micron bag filter
  • Speed control VFD Optional
  • Emery wheel (OD:90mm & Width:35mm, OD:140mm & Width:35mm, OD:140mm & Width:100mm
  • Scouring wire brush with collet as per request
Technical Data
Voltage 415v-AC
Power 2.3 Kw
Machine weight 175 Kg
Gross Weight 245 Kg
Dimension 1150x1220x1455
Packing Dim 1300x1370x1605
