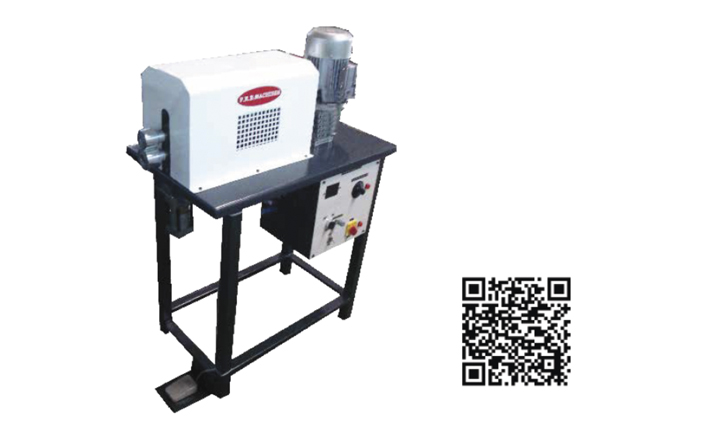

ROLLER EDGE PRESS MACHINE PR 1420

Machine is used to press the edge of the upper by means of pressure and heat.
  • The machine is used to press the edge of the upper lasting margin to ensure upper and lining is attached properly
  • By pressing the joint it maintain’s uniform thickness of the upper
  • Heavy duty worm gear box rotate the Roller
  • Component clamped by Pneumatic force
  • Roller speed controlled by variable frequency drive
  • Edge Pressing Process is Continuous which ensures high productivity
  • Covered cabinet to protect the operator hand
  • Digital temperature controller
  • User & Eco friendly.
Technical Data
Voltage 240v-AC
Power 0.47 Kw
Air Power 6 Bar
Machine weight 70 Kg
Gross Weight 110 Kg
Dimension 460x880x1400
Packing Dim 610x1030x1550
