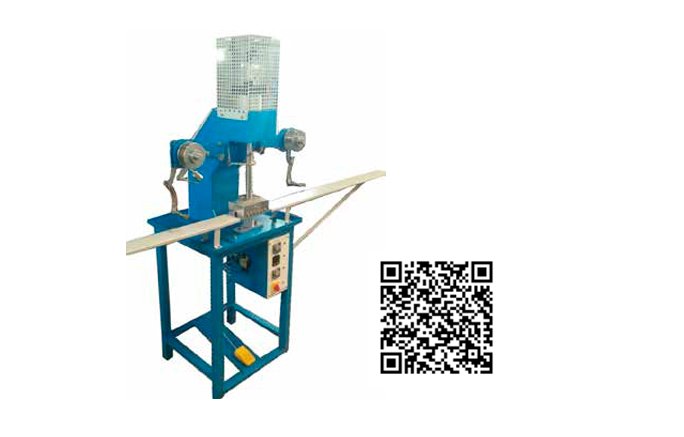

Used in the upper / closing department for embossing Images and Logos of lining / upper( Foil Feeding,Belt Support)
  • The machine is used to embossing images /Logo’s on components
  • The working area on the machine varies as per requirement
  • The machine temperature and dual time can be varied
  • Embossing can be done with or without foil.
  • This Thermo- pneumatic machine is a sleek, user friendly and compact machine.
  • Heat and pressing cycle can be regulated with the help of regulators depending on the requirement.
  • both side belt Support Frame
  • Sliding table is optional
Technical Data
Voltage 240v-AC
Power 0.3 Kw
Air Power 6 Bar
Machine weight 80 Kg
Gross Weight 130 Kg
Dimension 570x515x1450
Packing Dim 720x665x1600
